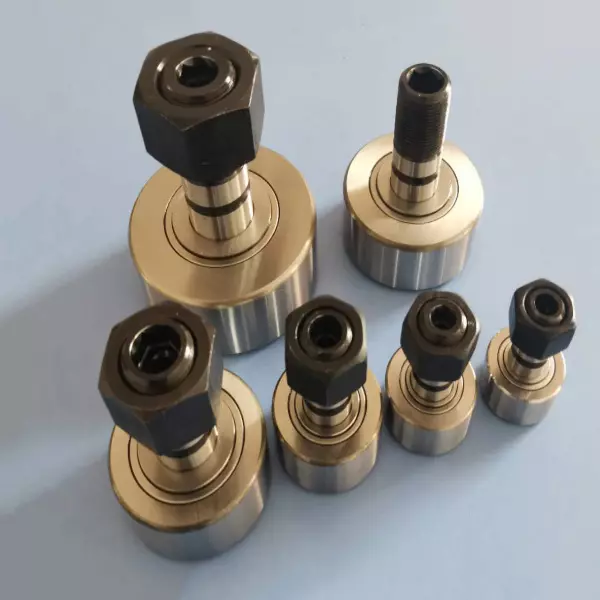

The raceway section of the bolt roller bearing’s bolt shaft is hardened, and the outer surface of the roller’s thick-walled outer ring is curved to prevent stress concentration. The outer ring has two integral flanges and is guided axially by the rollers. The head of the bolt shaft and the press-fitted side retainer provide axial support for the outer ring via the rollers.
Bolt roller bearings (NUKR series) feature the basic full-complement, double-row cylindrical roller design typical of bolt bearings.
| NUKR系列 |
基本型 |
满装双列圆柱滚子结构； |
| NUKRE系列 |
偏心套 |
螺栓轴上含有一个偏心套的满装双列圆柱滚子结构； |
| PWKR系列 |
双滚道 |
外圈为双滚道，两列滚子是分开的满装双列圆柱滚子结构； |
| NUKRA系列 |
带侧滚轮 |
双头螺栓，而且在螺栓轴尾部增加了一侧滚轮的单列满装圆柱滚子结构； |
| KR系列 |
|
外圈经由螺栓上的挡边和固定在螺栓上的挡圈被轴向引导； |
| KRV系列 |
满装滚针轴承 |
两侧都含有外圈经由螺栓上的挡边和固定在螺栓上的挡圈； |
